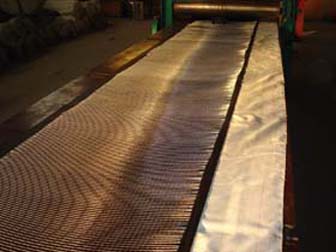

Application

Owing to space limitation or in case of lifting
materials at large slope, raised edge conveyor
belt is often used to prevent scatter of conveyed
materials. It is suitable for conveying materials
at a large slope from 0 degree to 90 degree
.

Feature
Materials can be conveyed at a large slope up to 90 degrees. The belt has large loading capacity and the materials cannot be scattered

The slope of conveying can be changed from horizontal to sloping or from sloping to horizontal.

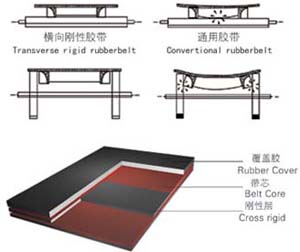

The conveyor is simple in structure, flexible in arrangement and occupying only a small area. The carcass material and strength of the belt can be
selected according to requirements of clients.

Cleat

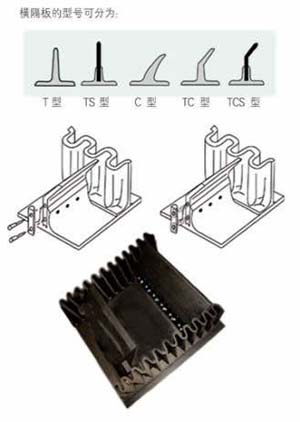

T, TS, C, TC and TCS The cleat is made of enforced fabric, solid, anti-shock to avoid distortion. "TS and TCS" cleat are normally used for abrasion condition.
"T and TS" cleat are normally used up to 40<,TC and TCS" are normally used from 40< to 90< Sidewall, cleat and base belt are joined through hot vulcanization. Cleat and sidewall are joined through bolt to prevent leak age of material.




BaseBeltWidth(mm)

Sidewall Height
(mm)

Cleat Height
(mm)

BF(mm)

Br(mm)

R(mm)

300

40

35

25

180

35

60

55

50

120

40

80

75

400

60

55

50

180

60

80

75

100

90

500

80

75

50

250

75

100

90

120

110

650

100

90

50

350

100

120

110

160

140

75

300

800

120

110

50

460

120

160

140

75

410

200

180


BaseBeltWidth(mm)

Sidewall Height
(mm)

Cleat Height(mm)

BF(mm)

Br(mm)

R(mm)

1000

160

140

75

550

150

200

280

240

220

1200

160

140

75

690

180

200

180

240

220

300

280

105

630

1400

200

180

75

830

210

240

220

300

280

105

770

400

360

1600

200

180

75105

970

240

240

220

300

280

75

910

400

360

1800

240

220

105

1110

270



300

280

125

1050



400

360



500

460



1010
